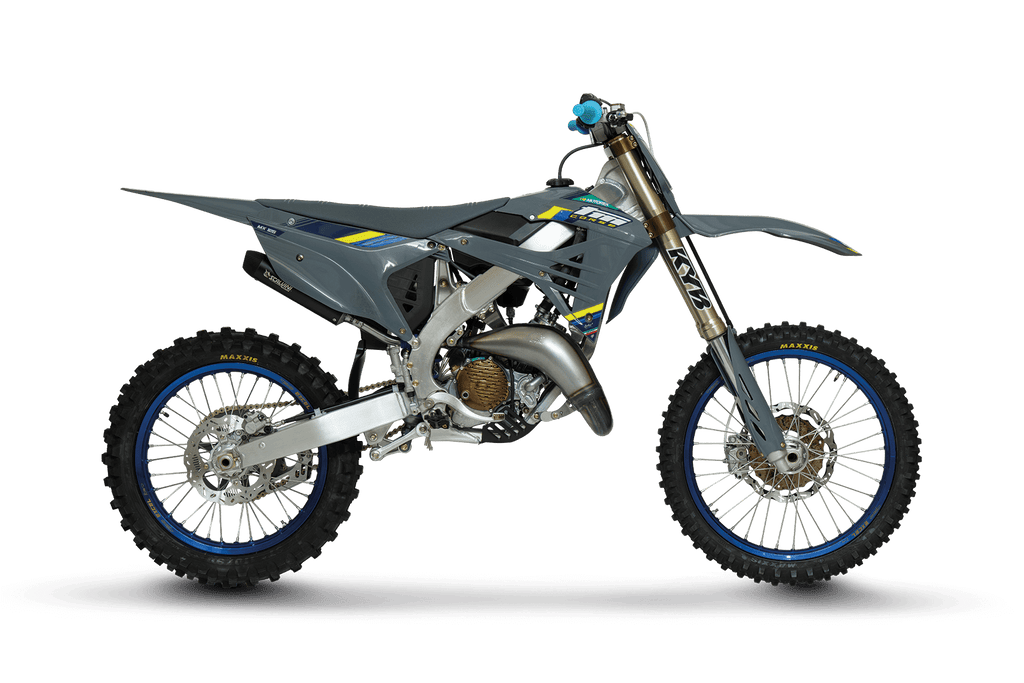

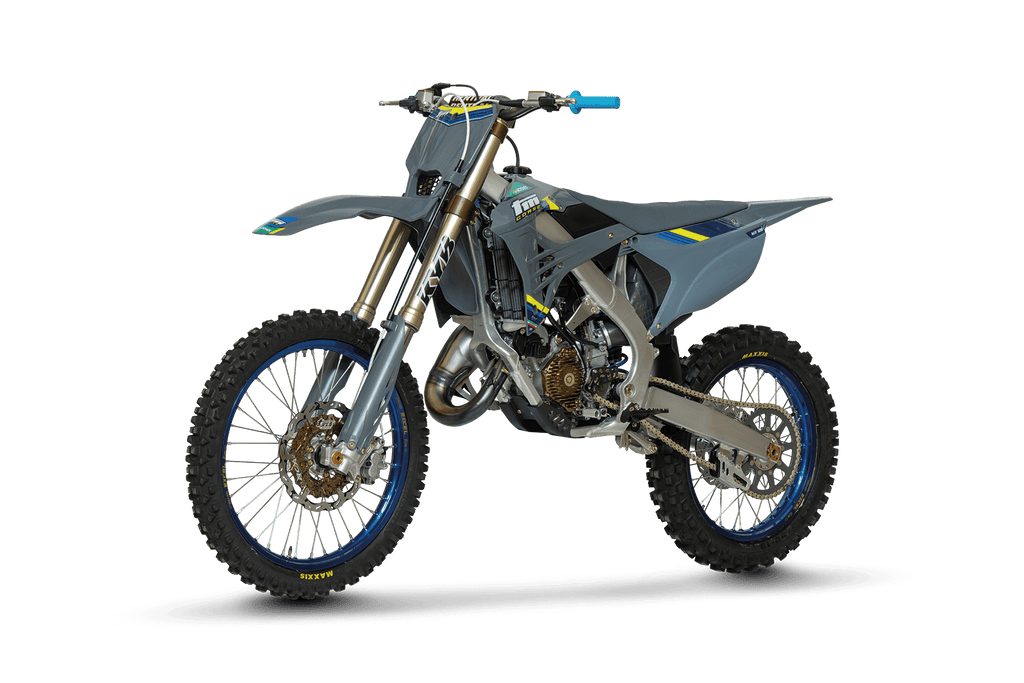

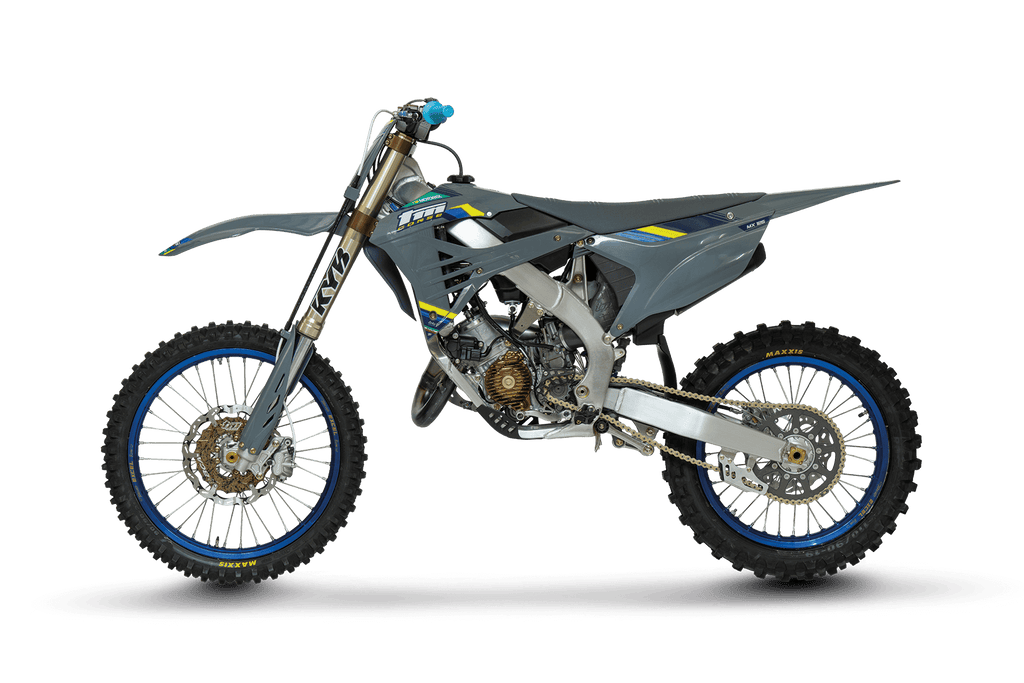

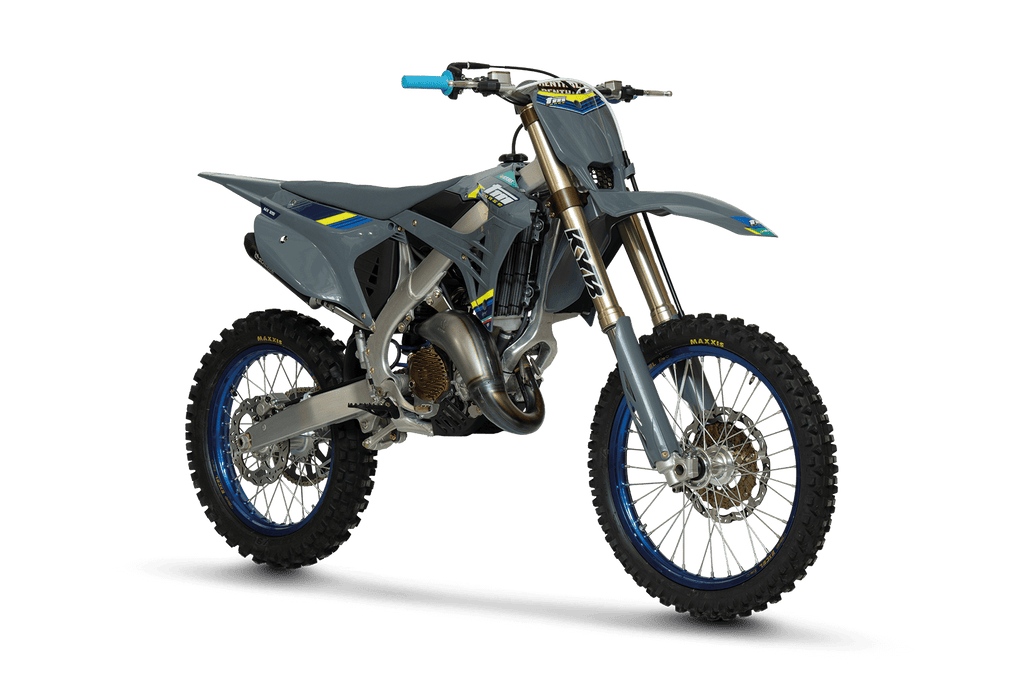

2026 TM Corse MX 125 ES 2T
The TM Corse edition takes an already exceptional machine and elevates it to full race specification. Built by hand in Pesaro, Italy machined aluminum throughout, upgraded braking, CNC bronze-anodized components, and a revised frame structure engineered for the podium. This is TM Racing at its most uncompromising. Includes all TM Corse factory upgrades: CNC aluminum fork plates, upgraded brake discs, bi-material sprocket, radiator fan, steel silencer, and dedicated Corse graphics. Also available as the standard MX 125 ES 2T (Standard). Colors: Black Dream · White
New for 2026: ★ New E.C.V.S. exhaust valve · ★ New TM Moto rear suspension unit · ★ New RK 520 MXU chain
| 2026 TM Racing MX 125 ES 2T — TM Corse — Full Specifications | |
|---|---|
| Engine | |
| Engine Type | 2-Stroke |
| Displacement | 124.8 cc |
| Bore | 54 mm |
| Stroke | 54.5 mm |
| Gearbox | 6-Speed |
| Starting System | Electric start only |
| Clutch | Multi-disc in oil bath |
| ECU | eMoticom |
| Fuel Delivery | Carburetor |
| Carburetor | Keihin PWK Ø 38 mm |
| Exhaust Valve | E.C.V.S. New 2026 |
| Frame & Suspension | |
| Frame Design | Self-tempering aluminum deltabox, single-beam, with extruded and forged details |
| Front Suspension | Kayaba Ø 48 mm |
| Rear Suspension | TM Moto New 2026 |
| Steering Head Angle | 63° |
| Suspension Travel — Front | 310 mm |
| Suspension Travel — Rear | 300 mm |
| Min. Ground Clearance | 36 cm |
| Brakes & Drivetrain | |
| Front Brake Disc | 270 mm |
| Rear Brake Disc | 240 mm |
| Front Master Cylinder | Brembo |
| Front Caliper | Brembo |
| Rear Master Cylinder | Nissin |
| Rear Caliper | Nissin |
| Chain | RK 520 MXU New 2026 |
| Dimensions & Availability | |
| Seat Height | 99 cm |
| Front Wheel | 19" |
| Rear Wheel | 21" |
| Dry Weight | 90 kg |
| Tank Capacity | 9.0 / 12 L |
| Colors | Black Dream · White |
| Also Available As | MX 125 ES 2T (Standard) |
| TM Corse Version | Yes — available |
| TM Corse Upgrades | |
| ★ New front brake disc with modified braking surface for more precise, aggressive and modulable braking | |
| ★ New solid rear brake disc for more modulable braking and reduced brake pad wear | |
| ★ CNC aluminum fork plates — bronze anodized, Made in Pesaro | |
| ★ CNC aluminum brake & clutch master cylinder reservoir caps — bronze color | |
| ★ Wheel pins with quick releases for easier wheel removal and reassembly (Enduro optional) | |
| ★ Rear caliper holder to keep rear brake caliper in place during wheel removal (Enduro optional) | |
| ★ Chain guide eye made of high-density plastic for greater wear resistance (Enduro optional) | |
| ★ Bi-material sprocket by CHT — aluminum body with steel chain track | |
| ★ Radiator fan for stable engine temperature in critical conditions | |
| ★ Revised and improved frame structure | |
| ★ CNC aluminum engine side covers — bronze anodized for aggressive racing look | |
| ★ New TM Corse logo steel silencer | |
| ★ New dedicated TM Corse graphics | |
| ★ New clutch with steel pressure plate and Belleville spring (250-300 2T/4T and 450 4T Enduro Corse, all MX) | |
Vehicles shown in ready-to-race configuration — not approved for road use. Specifications may differ from production models. TM Moto reserves the right to modify specifications without notice.
