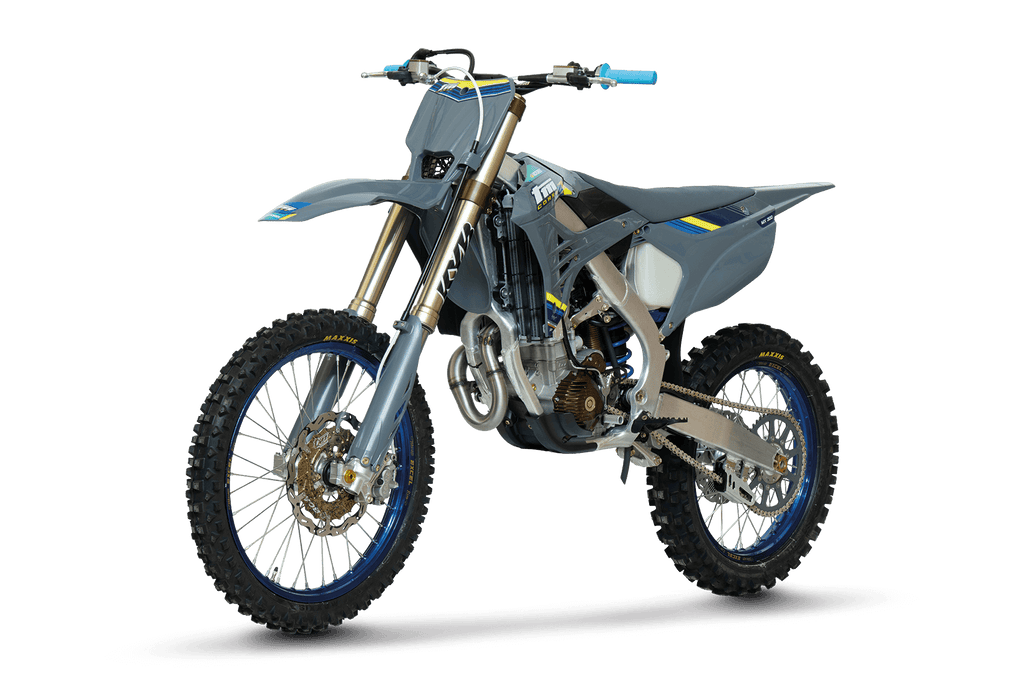

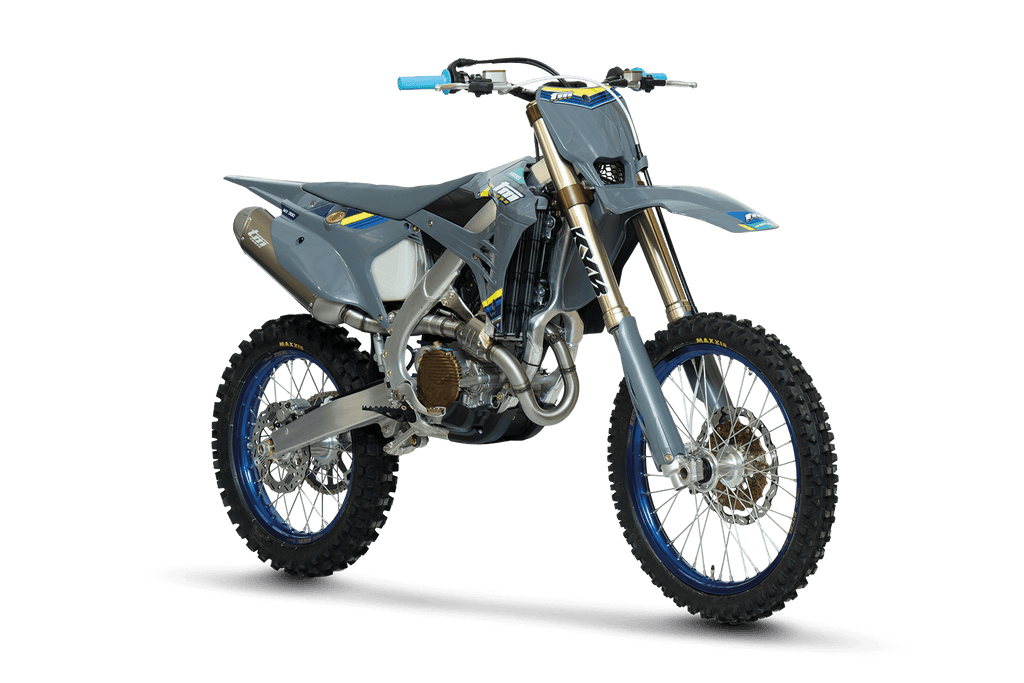

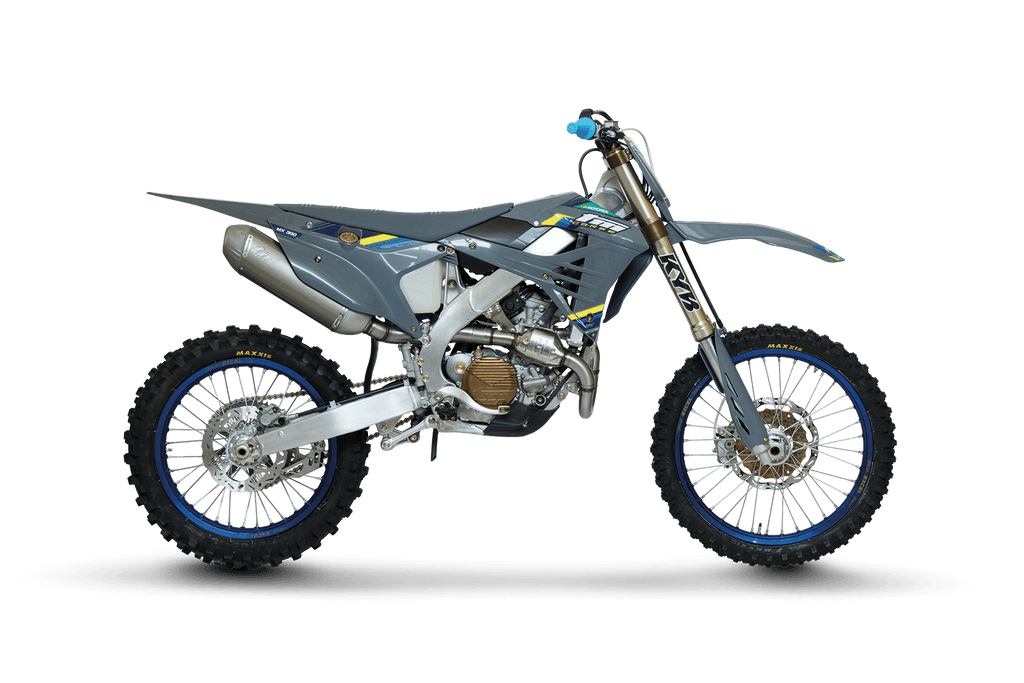

2026 TM Corse MX 300 ES FI 4T
The TM Corse edition takes an already exceptional machine and elevates it to full race specification. Built by hand in Pesaro, Italy — machined aluminum throughout, upgraded braking, CNC bronze-anodized components, and a revised frame structure engineered for the podium. This is TM Racing at its most uncompromising. Includes all TM Corse factory upgrades: CNC aluminum fork plates, upgraded brake discs, bi-material sprocket, radiator fan, steel silencer, and dedicated Corse graphics.
New for 2026: ★ Optional kick start · ★ Multi-disc clutch in oil bath · ★ New RK 520 MXU chain · ★ New TM Moto rear suspension unit
Colors: Black Dream · White Also available as the standard MX 300 ES FI 4T (Standard).— ask us about factory race upgrades.
Vehicles shown in ready-to-race configuration — not approved for road use. Specifications may differ from production models. Optional accessories available at additional cost.
| 2026 TM Racing MX 300 ES FI 4T — TM Corse — Full Specifications | |
|---|---|
| Engine | |
| Engine Type | 4-Stroke |
| Displacement | 299.4 cc |
| Bore | 81 mm |
| Stroke | 58.1 mm |
| Gearbox | 6-Speed |
| Starting System | Standard: Electric. Optional: Kick start New 2026 |
| Clutch | Multi-disc in oil bath New 2026 |
| ECU | eMoticom |
| EMS | TM Moto |
| Fuel Delivery | Fuel Injection |
| Frame & Suspension | |
| Frame Design | Self-tempering aluminum deltabox, single-beam, with extruded and forged details |
| Front Suspension | Kayaba Ø 48 mm |
| Rear Suspension | TM Moto New 2026 |
| Steering Head Angle | 63° |
| Suspension Travel — Front | 310 mm |
| Suspension Travel — Rear | 300 mm |
| Min. Ground Clearance | 35.5 cm |
| Brakes & Drivetrain | |
| Front Brake Disc | 270 mm |
| Rear Brake Disc | 240 mm |
| Front Master Cylinder | Brembo |
| Front Caliper | Brembo |
| Rear Master Cylinder | Nissin |
| Rear Caliper | Nissin |
| Chain | RK 520 MXU New 2026 |
| Dimensions & Availability | |
| Seat Height | 97 cm |
| Front Wheel | 19" |
| Rear Wheel | 21" |
| Dry Weight | 99 kg |
| Tank Capacity | 7.5 L |
| Colors | Black Dream · White |
| Also Available As | MX 300 ES FI 4T (Standard) |
| TM Corse Version | Yes — available |
| TM Corse Upgrades | |
| ★ New front brake disc with modified braking surface for more precise, aggressive and modulable braking | |
| ★ New solid rear brake disc for more modulable braking and reduced brake pad wear | |
| ★ CNC aluminum fork plates — bronze anodized, Made in Pesaro | |
| ★ CNC aluminum brake & clutch master cylinder reservoir caps — bronze color | |
| ★ Wheel pins with quick releases for easier wheel removal and reassembly (Enduro optional) | |
| ★ Rear caliper holder to keep rear brake caliper in place during wheel removal (Enduro optional) | |
| ★ Chain guide eye made of high-density plastic for greater wear resistance (Enduro optional) | |
| ★ Bi-material sprocket by CHT — aluminum body with steel chain track | |
| ★ Radiator fan for stable engine temperature in critical conditions | |
| ★ Revised and improved frame structure | |
| ★ CNC aluminum engine side covers — bronze anodized for aggressive racing look | |
| ★ New TM Corse logo steel silencer | |
| ★ New dedicated TM Corse graphics | |
| ★ New clutch with steel pressure plate and Belleville spring (250-300 2T/4T and 450 4T Enduro Corse, all MX) | |
